If your Breville Barista Express turns on but is not heating up, first return the STEAM/HOT WATER dial to STANDBY and wait for the POWER light to stop flashing. If the controls show that the machine is ready but the group head, hot-water outlet and steam all remain cold, this is probably a genuine heating-system fault rather than a temperature setting or warm-cup problem.
This guide covers the original Barista Express BES870 series, including the BES870XL sold in North America. It does not cover the Barista Express Impress BES876 or Barista Pro. The model-specific light behavior and operating steps below follow the current official U.S. BES870 instruction manual.
Safety first: The machine combines line voltage, water, pressure and hot surfaces. Do not remove the housing, probe live voltage or bypass a thermal device. Unplug the machine and stop testing for a burning smell, smoke, sparks, a hot or discolored plug, water inside the housing, or a breaker or GFCI that trips again.
Match the symptom before changing anything
| What the machine does | Most useful interpretation | First action |
|---|---|---|
| STEAM/HOT WATER light flashes as soon as it is switched on | The dial is not in STANDBY, so normal heat-up cannot begin | Turn the dial to its center STANDBY position |
| POWER flashes, then becomes steady and all panel buttons illuminate | Normal heating or reheating has completed | Test hot water and steam |
| Machine shows ready, but espresso is only lukewarm | Cup, portafilter, temperature setting or scale may be involved | Separate a cold drink from a no-heat fault |
| Hot-water outlet, steam and group-head water all stay cold | A system-wide heating fault is likely | Stop after the safe external tests and arrange service |
| Water is weak or absent rather than cold | This may be a flow or priming problem | Diagnose water delivery separately |
| Machine stops during use | The documented safety thermal cutout may have activated | Switch off, unplug and cool for 30–60 minutes |
| No lights or response at all | This is a power fault, not simply a heating fault | Follow the no-power checks |
If the pattern itself is unclear, use the Barista Express lights guide to identify the exact steady or flashing indicator before continuing.

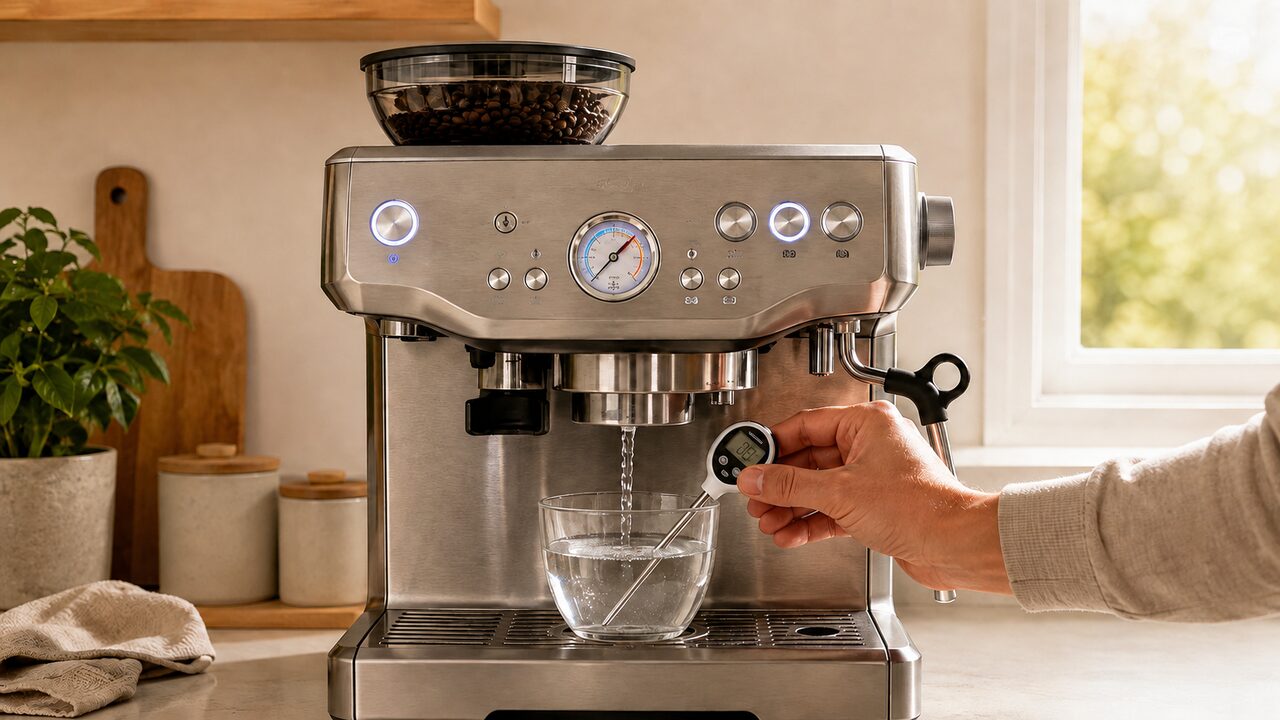

Run this safe no-heat test without coffee
Testing the three heated functions separately is more useful than judging one lukewarm espresso. Remove the portafilter and keep your hands clear of every outlet.
- Fill and reseat the water tank. Press it fully into place and turn the STEAM/HOT WATER dial to center STANDBY.
- Press POWER and watch the panel. During normal heat-up, POWER flashes. Continue only after it becomes steady and all control-panel button lights illuminate.
- Test the group head. With the portafilter removed and a cup in place, press 1 CUP once and observe whether the delivered water is clearly warm or hot. Keep your hands away from the flow.
- Test the hot-water outlet briefly. Place a heat-safe cup underneath, select HOT WATER and observe from a safe distance. Return the dial to STANDBY after the test.
- Test steam separately. Aim the wand into the drip tray, select STEAM and wait while its indicator flashes. The steam function is ready when that light stops flashing. Return the dial to STANDBY when finished.
- Compare all three results. Note whether group-head water, hot water and steam are hot, merely weak, or completely absent.
Do not diagnose the machine from one arbitrary thermometer number at the cup. Water loses heat as it travels through the outlet and into a cool vessel, so a cup reading is not the same as the controlled temperature inside the brewing system. The important first distinction is whether the machine creates obvious heat at any outlet.
The steam dial can prevent normal heating
The simplest documented cause is easy to miss: if the STEAM/HOT WATER dial is not in STANDBY when the machine is turned on, its indicator flashes and the Barista Express does not start the normal heating cycle. Return the dial to center. The regular heat-up sequence should begin, with POWER flashing until the machine reaches operating temperature.
If the dial was already centered, move it deliberately to STANDBY and make sure it is not resting between positions. A correctly centered dial that still produces the same warning could indicate a switch or control fault; repeated turning will not repair it.
What a flashing POWER light means
A flashing POWER light normally means the thermocoil is heating, not that the heater has failed. It also flashes while the machine reheats after waking from SLEEP. The BES870 enters SLEEP after 1 hour of inactivity and AUTO OFF after 3 hours, so a fresh startup can be completely normal.
- POWER eventually becomes steady: the controller believes operating temperature has been reached. Continue with the outlet tests.
- POWER never reaches the ready state: switch off, unplug and let the machine cool. If the behavior repeats from a cold start with a full, seated tank and centered dial, arrange service.
- The entire panel is dark: use the Barista Express won’t-turn-on diagnosis instead; a heating article cannot solve loss of incoming power.
Do not keep pressing random combinations while POWER flashes. Some combinations enter cleaning, descaling or temperature modes and can make the display more confusing without testing the heater.
Lukewarm coffee is not always a failed heater
If the hot-water outlet and steam are clearly hot, the thermocoil is producing heat. A drink can still seem cool because cold ceramic, a cold portafilter and milk absorb heat quickly. Start with the operating conditions before treating it as an internal failure.
- Warm the cup with the hot-water outlet or on the cup-warming tray.
- Run hot water through the portafilter and basket, then dry them thoroughly before adding ground coffee.
- For a milk drink, heat the milk rather than relying on the espresso to warm a large volume of cold milk. Breville’s operating range for milk texturing is 140–149°F (60–65°C).
- Allow the machine to return to its ready state after steaming. Water discharged into the drip tray during automatic purging is normal as the thermocoil returns to espresso temperature.
The BES870 also offers an Advanced Temperature Mode with a limited adjustment range of 4°F above or below the default, in 2°F steps. Use the Barista Express settings guide if the machine heats normally but your espresso consistently needs a small temperature correction. That adjustment can fine-tune a working machine; it cannot make completely cold water hot.
Scale can reduce performance, but do not descale blindly
Mineral buildup can impair water flow and heat transfer, especially when performance has declined gradually or the CLEAN / DESCALE indicator shows that descaling is due. In that situation, complete the correct procedure in the Barista Express cleaning and descaling guide.
Descaling is not a universal cure for sudden total loss of heat. Do not pour extra acid into the tank, repeat cycles back-to-back or confuse a cleaning-tablet backflush with descaling. If every outlet remains cold while the panel reports ready, chemicals cannot repair a heater, temperature sensor, thermal protection device or control circuit.
Use the outlet pattern to narrow the fault
| Test result | What it suggests | Next guide or action |
|---|---|---|
| Hot water and steam are hot; espresso seems lukewarm | Not a total heater failure | Preheat the equipment and review the temperature setting |
| Group head and hot-water outlet deliver little or no water | Tank seating, priming, blockage, scale or pump issue | Follow the water-flow diagnosis |
| Group head and hot water work, but steam alone does not | Steam readiness, blocked tip or steam-control issue | Diagnose the wand separately |
| All outlets flow, but every one stays cold | System-wide heating or temperature-control fault | Stop owner testing and arrange service |
| The panel says ready unusually fast while all water is cold | Temperature sensing or control may be incorrect | Arrange professional diagnosis |
If the real problem is weak or missing water rather than water temperature, use the Barista Express no-water-flow checks. If only steam is affected after the coffee and hot-water functions heat normally, follow the steam-wand troubleshooting guide. Keeping these symptoms separate prevents unnecessary heater repairs.
There is no button reset that repairs no heat
The current BES870 manual does not document a heating-system reset or a factory reset that repairs failed hardware. Its button combinations have specific, unrelated purposes:
- Holding PROGRAM until three beeps restores programmed shot volumes and the default espresso-water temperature.
- Holding 1 CUP, 2 CUP and POWER starts the cleaning cycle.
- Holding 2 CUP and POWER enters descale mode.
- Holding PROGRAM while pressing POWER enters Advanced Temperature Mode.
A settings reset may undo an incorrect temperature adjustment, but the allowed adjustment is small. No button sequence can reconnect an open heater, replace a thermal fuse, repair a sensor or restore a failed control component.
What to do if the machine stopped while in use
Breville documents a safety thermal cutout that may activate if the pump or grinder overheats. If the machine stopped during use, press POWER to switch it off if it still responds, unplug it and leave it undisturbed for 30–60 minutes. Then reconnect it to a confirmed working outlet and test it once.
If it recovers, do not immediately repeat the long grinding or pumping operation that preceded the shutdown. If it will not heat after cooling, or shuts down again during ordinary use, stop using it. An internal protective device is not something to bypass or replace without finding the fault that activated it.
Continuous steaming has a different documented limit: the machine disables steam after about five minutes and flashes the STEAM/HOT WATER light. Returning the dial to STANDBY clears that operating condition; it does not indicate that the main heater necessarily failed.
When the Barista Express needs professional service
If you are searching for a Breville Barista Express heating element, a no-heat symptom does not by itself prove that the internal thermocoil or heater has failed. If the machine powers on but group-head water, hot water and steam all remain cold after the external checks above, the heating system may require professional diagnosis rather than a speculative parts replacement.
Once the tank, dial position, normal ready state and three outlet results have been checked, there is little value in opening the machine. Possible internal causes include the thermocoil or heater connection, a temperature sensor, thermal protection, damaged wiring, or a power/control-board component. The external symptom alone cannot identify which part failed.
- Keep it unplugged if all functions remain cold despite a ready indication.
- Stop immediately if the plug or cord becomes hot, the machine smells burned, water may have entered the housing, or electrical protection trips.
- Contact Breville first if the machine may still be covered by warranty.
- For an older unit, request a written diagnosis before authorizing an expensive electrical repair.
Use the Barista Express repair-or-replace guide to weigh the estimate against the machine’s age, leak history, grinder condition, other recurring faults and the warranty offered on the repair.
Breville Barista Express heating FAQs
How do I know when the Barista Express is heated?
During normal startup, the POWER light flashes. The BES870 is at its operating state when POWER stops flashing and all control-panel button lights illuminate. Steam has its own brief heating state, shown by the STEAM/HOT WATER light flashing until steam is ready.
Why is the steam light flashing and the machine not heating?
If it happens immediately after switch-on, return the STEAM/HOT WATER dial to center STANDBY. The machine will not begin its normal heating cycle while that dial is left in an operating position.
Can descaling fix a Barista Express that is not heating?
Descaling can help when mineral buildup has gradually impaired heat transfer or flow. It is unlikely to fix a sudden system-wide loss of heat when the panel reports ready but the group head, hot water and steam all remain cold.
Why is my espresso warm but not hot?
A cold cup, portafilter, basket or large volume of milk can pull heat from an otherwise normal espresso. Preheat the cup and brewing parts, verify that hot water and steam work, and use the limited temperature adjustment only after confirming normal heat-up.
Does the Barista Express have a heater reset?
No owner-accessible heater reset is documented for the BES870. The PROGRAM reset changes saved shot volumes and espresso-water temperature; it does not repair an internal heating or control fault.
Should I open the machine to check the thermal fuse?
No. A technician must determine whether the heater, sensor, wiring, thermal protection or control electronics failed and why. Replacing or bypassing a protective part without diagnosing the cause can create a shock, fire or overheating hazard.
The fastest reliable diagnosis is to center the steam dial, wait for the normal ready state and compare group-head water, hot water and steam. If the machine reports ready but every function stays cold, the Breville Barista Express is not heating and needs professional service rather than another reset or cleaning cycle.
