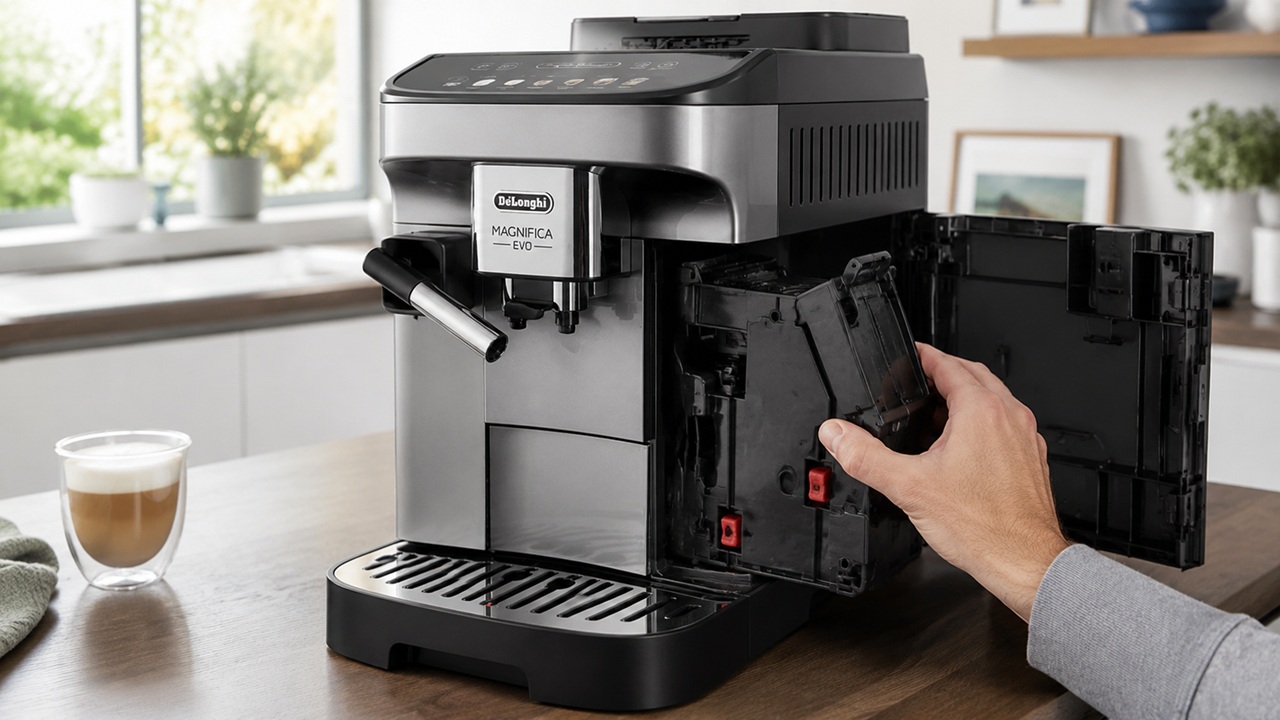

If your DeLonghi Magnifica Evo infuser is stuck, do not pull harder or try to move the internal carriage by hand. On the ECAM29084SB, the most common owner-fixable cause is that the brew unit stopped outside its removable position because the machine was unplugged, interrupted or opened before its normal shutdown finished. Reassemble the machine, let it complete one full startup, then switch it off with the power button and wait until all movement stops before trying the infuser again.
This guide is specifically for the U.S. De’Longhi Magnifica Evo with LatteCrema System ECAM29084SB, within the ECAM29X.6Y–ECAM29X.8Y family. It covers an infuser that will not come out, is stuck too high or too low, will not go back in after cleaning, or appears together with a red general-alarm light. For unrelated faults, start with the Magnifica Evo ECAM29084SB troubleshooting guide.
Do not force the brew unit. Do not pry it with a screwdriver, turn visible gears, manually rotate the drive mechanism, reach behind the carriage or defeat the service-door switch. If the machine cannot reposition the infuser through a normal startup and shutdown, stop before a positioning fault becomes broken plastic, stripped gears or a drive-system repair.
Magnifica Evo infuser stuck: quick diagnosis
| What you see | Most likely situation | First action |
|---|---|---|
| Infuser is visible but will not pull out | Machine was not fully shut down | Reassemble, complete one startup and normal shutdown, then retry |
| Infuser is very high or very low in the opening | Brew carriage stopped outside its removal position | Let the powered machine reposition itself; do not move the mechanism manually |
| Infuser came out but will not slide back in | Infuser or carriage is not aligned | Check the brew unit is correctly assembled and try only with light pressure |
| Infuser will not click into place | Unit is not fully seated, residue is obstructing it or the carriage position is wrong | Remove loose accessible grounds, align the unit and press the marked PUSH area only |
| Red triangle appeared after cleaning | Infuser, tray or another removable part may be mis-seated | Recheck the complete reassembly before assuming an internal fault |
| Machine makes harsh clicking, grinding or repeated drive noises | Mechanical obstruction or drive fault is possible | Switch off and stop troubleshooting |
| Normal startup/shutdown does not change the infuser position | The problem is no longer a simple shutdown-position issue | Do not force it; arrange model-specific support |
Why the Magnifica Evo infuser gets stuck
The removable infuser does not stay in one fixed place while the machine operates. During grinding, brewing, ejecting the coffee puck, rinsing and shutdown, the internal drive moves the brew unit through different positions. The position you see while the machine is working is therefore not necessarily the position from which it can be removed.
This is why unplugging a Magnifica Evo is not the same as switching it off. Pressing the normal power control starts a shutdown sequence that allows the mechanism to finish moving. Pulling the plug first can stop that sequence wherever the infuser happens to be.
- Power interruption: the electricity went off or the plug was removed while the machine was operating or shutting down.
- Shutdown was interrupted: the machine was opened or unplugged before its internal movement had finished.
- Infuser was accessed while the machine was still on: the carriage may still be in its working position rather than its removal position.
- Coffee residue is obstructing movement: loose or compacted grounds around the owner-accessible brew compartment can prevent clean seating.
- Infuser was reinstalled incorrectly: the unit may not be fully seated or its locking tabs may not have engaged.
- Mechanical or position fault: if a correct power cycle cannot restore the removable position, the drive, sensor or another internal component may need service.
How to remove a stuck Magnifica Evo infuser safely
If the infuser does not release with gentle hand pressure, use this sequence before doing anything else. The important part is not simply turning the machine off and back on; it is allowing both the startup and shutdown sequences to finish completely.
- Stop trying to pull the infuser. Put the water tank, drip tray, grounds container and service door back into their normal operating positions.
- Reconnect the machine if it was unplugged. Do not hold the infuser or reach through the access opening while power is connected.
- Switch the Magnifica Evo on normally. Let startup, internal movement and any automatic rinse finish. Do not interrupt it because you hear the brew unit moving.
- Switch it off using the normal power button. Leave the machine alone until the shutdown sequence and internal movement have completely stopped.
- Unplug the machine only after shutdown is complete. Now remove the water tank and open the infuser access door.
- Press both colored release buttons. Pull the infuser straight outward using gentle, even pressure. It should release without levering or twisting against the carriage.
- If it still does not move freely, stop. Repeating the same pull with more force is not another diagnostic step.
A successful startup-and-shutdown cycle is especially important after a brief outage, accidental unplugging or a previous attempt to remove the infuser before the machine had finished powering down.
Infuser stuck too high or too low
An infuser that appears unusually high, low or partly hidden behind the service opening is usually a positioning problem first, not a signal to pull it toward the opening. The drive has stopped with the brew unit somewhere in its operating travel.
Close the access area, reinstall the water tank and tray assembly, then let the machine attempt the complete startup and normal shutdown described above. If the mechanism moves and later presents the infuser in its normal removable position, no manual repositioning is needed.
Do not copy videos that show someone rotating a gear, turning a motor shaft or moving the carriage through the access door. Those actions bypass the machine’s own position control and make it impossible to know whether the mechanical position still matches what the electronics expect.
Infuser will not go back in after cleaning
If the brew unit came out normally but now will not reinstall, first determine whether the problem is the infuser itself or the carriage position inside the machine. Do not solve either one by pushing harder.
| Check | What should happen | If it does not |
|---|---|---|
| Infuser release buttons | They move freely and return outward | Rinse away residue and inspect for visible damage |
| Infuser body | No loose coffee puck or hardened grounds prevent movement | Clean with water and a soft brush; do not use detergent |
| Guide alignment | The unit enters its support squarely | Remove it and realign rather than twisting |
| PUSH locking point | A correctly aligned unit seats with a positive click | Stop if substantial force is required |
| Internal carriage | It is positioned to accept the infuser after a correct shutdown | Do not manually turn the drive mechanism |
When the infuser is correctly aligned, slide it onto its support and press the area marked PUSH until it clicks into place. The release buttons should return outward. If the unit reaches an obvious hard stop before it is seated, remove it and investigate alignment or residue instead of striking or forcing it.
Do not use a generic De’Longhi button combination from another machine to reposition the carriage. Magnifica, Dinamica, Autentica and older ECAM models can look mechanically similar while using different controls. For the ECAM29084SB, keep the recovery procedure model-safe: normal startup, normal shutdown, then owner-accessible removal or reinstallation.
Clean the infuser before reinstalling it
Once the infuser comes out normally, cleaning it is worthwhile before reinstalling it. Coffee oils and damp grounds can accumulate around moving surfaces and the brew chamber, but the removable unit does not need detergent or an aggressive cleaner.
- Rinse the removed infuser with lukewarm water.
- If residue is stubborn, let the unit sit in lukewarm water for a few minutes.
- Use a soft cleaning brush to loosen accessible coffee residue.
- Rinse again with clean water.
- Remove loose grounds from the accessible infuser compartment without reaching into the drive mechanism.
- Reinsert the infuser only when it is aligned and moves into place without excessive force.
Use water only on the infuser. Do not wash the brew unit with dish detergent or put it in a dishwasher. Cleaning chemicals intended for the milk system or descaling circuit are not a substitute for the infuser’s water-only cleaning procedure.
Red triangle after removing or reinstalling the infuser
A red general-alarm triangle immediately after infuser cleaning does not automatically mean the brew unit is broken. First confirm that the infuser is fully seated, the service door is closed, the water tank is fitted correctly and the complete drip-tray and grounds-container assembly is back in place.
If you need to identify whether the triangle is steady or flashing and what another illuminated symbol means, use the Magnifica Evo warning lights guide. That page owns the panel diagnosis; this guide owns the mechanical infuser-removal and reinstallation problem.
If the alarm returns immediately after a correct shutdown, clean infuser and complete reassembly, stop repeatedly cycling the machine. The visible warning can no longer tell you from outside whether the remaining cause is obstruction, carriage position, drive failure or a sensor problem.
If the red triangle remains or keeps returning after the infuser and removable parts are correctly installed, continue with the full Magnifica Evo general alarm troubleshooting guide.
What not to do with a stuck brew unit
- Do not pull harder. The release tabs do not override an incorrectly positioned carriage.
- Do not pry the infuser outward. Screwdrivers and other levers can damage the plastic guides and housing.
- Do not rotate visible gears or the drive by hand. Let the machine establish its own position.
- Do not keep unplugging it during movement. That can reproduce the same interrupted-position problem you are trying to correct.
- Do not lubricate random internal parts. A stuck carriage has not been diagnosed simply because grease appears in a forum or video.
- Do not open the outer housing. The owner-removable infuser is accessible without exposing mains-powered or pressurized internal components.
- Do not run repeated coffee cycles to “push it loose.” If the infuser is mechanically jammed or incorrectly seated, additional brew attempts can increase the load on the mechanism.
Infuser moves again but the machine still will not make coffee
Once the infuser can be removed, cleaned, correctly reinstalled and the machine completes startup normally, the stuck-infuser problem is resolved. If the remaining symptom is that the grinder runs but nothing reaches the cup, coffee drips very slowly, only one outlet works or hot water also fails, do not keep treating the brew unit as the only cause.
Use the Magnifica Evo not dispensing coffee guide to separate water supply, grind, bean feed, coffee-spout and brewing-path faults. Keeping those checks separate prevents unnecessary infuser removal every time coffee delivery changes.
When a stuck infuser needs service
Stop owner troubleshooting when the normal positioning sequence no longer produces normal movement. A removable brew unit is designed for routine cleaning, but the motor, carriage drive, position sensing and internal transmission are not owner-service items. If the removable infuser itself is visibly cracked, distorted or has broken release hardware, use the Magnifica Evo replacement parts guide to verify the correct ECAM29084SB brew-unit part number before ordering.
- The infuser remains locked after one complete startup followed by one complete normal shutdown.
- The machine immediately returns to a red general alarm without moving the brew unit into its normal position.
- You hear repeated hard clicking, grinding, knocking or a stalled-motor sound.
- The infuser is visibly crooked, damaged or trapped against the carriage.
- The PUSH mechanism or either release button is broken or will not return normally.
- The carriage does not move during startup or shutdown even though the rest of the machine powers normally.
- The fault began immediately after a fall, shipping damage, foreign object or forced reinstallation.
- Water reaches the electrical area, the machine trips a breaker, smells burned or produces an abnormal electrical or mechanical noise.
For support, record the complete ECAM29084SB product code, the exact warning-light state, whether the infuser is high, low or visibly crooked, what happened immediately before it became stuck, and whether a full startup and normal shutdown changed its position. A short video of the startup noise or carriage movement can also be more useful than repeatedly operating the machine.
How to prevent the infuser getting stuck again
- Always use the normal power button and allow shutdown to finish before unplugging the machine.
- Do not open the infuser compartment while the Magnifica Evo is operating.
- Rinse the removable infuser regularly with water rather than waiting for heavy coffee buildup.
- Remove loose grounds from the owner-accessible compartment during routine cleaning.
- Reinstall the infuser squarely and confirm the PUSH lock engages before closing the access door.
- Do not keep operating the machine when a new mechanical noise or persistent general alarm appears.
Magnifica Evo infuser FAQs
Why can’t I remove the infuser from my DeLonghi Magnifica Evo?
The machine may not have completed the shutdown sequence that places the brew unit in its removable position. Reassemble the machine, let it finish a full startup, switch it off with the normal power button and wait until shutdown finishes before unplugging it and trying again. If it still will not release gently, do not force it.
Can I pull a stuck Magnifica Evo infuser out with more force?
No. If both release buttons are pressed and the infuser does not slide out with gentle pressure, its carriage may be in the wrong position or the mechanism may be obstructed. More pulling does not correct either condition and can damage the guides or brew unit.
Why is my Magnifica Evo infuser stuck at the top?
The brew unit can stop high in its operating travel if power or shutdown was interrupted. Do not try to drag it downward manually. Restore the machine to its normal assembled state, complete one startup and then a normal shutdown so the drive can attempt to reposition itself.
Why won’t the infuser go back into my Magnifica Evo?
The removable unit may not be aligned with its guides, coffee residue may be preventing it from seating or the internal carriage may not be in the correct position. Clean and align the infuser, then press the marked PUSH area only when it enters squarely. Do not force it against a hard stop.
Should the Magnifica Evo be on or off when I remove the infuser?
It should be switched off using its normal power control and allowed to complete the full shutdown sequence first. Unplug it only after shutdown is finished, then access the infuser. Turning off power at the wall or pulling the plug first can leave the brew unit outside its removal position.
Can I wash the Magnifica Evo infuser with dish soap?
No. Clean the removable infuser with water, using a soft brush for accessible coffee residue if necessary. Do not use dish detergent and do not put the brew unit in a dishwasher.
Does a red triangle mean the infuser is broken?
Not necessarily. After infuser cleaning, the general alarm can appear because the brew unit or another removable component is not seated correctly. Recheck the infuser, tank, service door, drip tray and grounds container. If the alarm persists after correct reassembly and normal shutdown, stop before attempting internal repairs.
A stuck Magnifica Evo infuser is often a positioning problem rather than a part that needs to be pulled free. Give the ECAM29084SB one uninterrupted opportunity to complete startup and normal shutdown, remove the brew unit only when it releases gently, clean it with water and reinstall it squarely until the lock engages. If the machine cannot reposition it by itself, forcing the carriage is where owner troubleshooting should end.
